A soda can may look like a simple aluminum cylinder, but soda can dimensions depend on its capacity, body style, manufacturer, and market. Two cans can hold the same amount of liquid while having noticeably different heights and diameters.
The familiar North American format is the standard 12 fl oz can. Manufacturer specifications place this 355 ml can at 122.22 millimeters high and 66.1 millimeters across its body.
In inches, those standard soda can dimensions equal 4.812 inches in height and 2.602 inches in diameter. Slim, sleek, mini, and tall cans use different proportions, so capacity alone does not reveal a can’s physical size.
Standard Soda Can Dimensions at a Glance
The following measurements describe the Shining Packaging 355 ml standard aluminum can. The manufacturer identifies it as a standard 12 oz can with a 211 body and 202 end.
| Measurement | Inches | Metric |
| Can height | 4.812 in | 122.22 mm |
| Body diameter | 2.602 in | 66.1 mm |
| Body radius | 1.301 in | 33.05 mm |
| Calculated circumference | 8.176 in | 207.66 mm |
| Inside neck diameter | 2.063 in | 52.40 mm |
| Stand diameter | 1.860 in | 47.24 mm |
| Nominal capacity | 12 US fl oz | 355 ml |
| Brimful capacity | — | 379 ± 3 ml |
| Easy-open end | 202 | 52.4 ± 0.25 mm |
The manufacturer gives the empty open-can height as 122.22 ± 0.30 millimeters. Small production tolerances can therefore occur even within the same format. Shining Packaging 355 ml standard-can specifications
Pakistan Aluminium Beverage Cans publishes a closely matching 355 ml classic can at 122 millimeters high, 66 millimeters in diameter, and fitted with a 202 end. PABC standard 355 ml can
How Tall Is a Standard Soda Can?
A manufacturer-specified standard 12 oz soda can is 122.22 millimeters high, which converts to 4.812 inches or 12.222 centimeters. In consumer-facing descriptions, this may be rounded to 4.81 or 4.8 inches.
This measurement runs vertically from the lowest part of the base to the upper edge of the empty can. The body includes a concave bottom, straight sidewall, tapered neck, flange, and attached easy-open end once the can is finished.
Not every 12 oz soda can has this height. A sleek 12 oz can can hold the same 355 ml while standing 156.6 millimeters high because it has a narrower body.
How Wide Is a Soda Can?
The standard 355 ml can has an outside body diameter of 66.1 millimeters, equal to 2.602 inches or 6.61 centimeters. Because the can is cylindrical, its width and body diameter describe the same straight measurement across its widest section.
Measure this distance through the center of the body rather than across the smaller lid. A standard can narrows near the top, so measuring only the end produces a smaller result.
The Shining Packaging standard can uses a 52.4-millimeter inside neck measurement and a 66.1-millimeter outside body diameter. This difference explains why the top looks narrower than the main wall.
What Is the Circumference of a Soda Can?
Circumference measures the distance around the cylindrical body. It is calculated by multiplying the diameter by pi:
Circumference = π × diameter
For a body diameter of 66.1 millimeters:
3.14159265 × 66.1 = 207.66 millimeters
That equals 20.766 centimeters or 8.176 inches. This is a calculated value based on the specified body diameter, not the size of a printed label or the circumference around the tapered neck.
A label wrapped around the straight body needs additional material for overlap, bleed, and production tolerances. Do not use the calculated circumference as a final artwork template without obtaining the can supplier’s current design file.
Soda Can Dimensions by Size
“Soda can” describes several container formats rather than one universal size. The chart below compares standard, slim, and sleek aluminum cans using published manufacturer specifications.
| Can style | Capacity | Height | Body diameter |
| Standard | 250 ml / 8.4 oz | 92 mm / 3.622 in | 66.1 mm / 2.602 in |
| Standard | 330 ml / 11.2 oz | 115.2 mm / 4.535 in | 66.1 mm / 2.602 in |
| Standard | 355 ml / 12 oz | 122.22 mm / 4.812 in | 66.1 mm / 2.602 in |
| Standard | 473 ml / 16 oz | 157.23 mm / 6.190 in | 66.1 mm / 2.602 in |
| Standard | 500 ml / 16.9 oz | 167.84 mm / 6.608 in | 66.1 mm / 2.602 in |
| Slim | 250 ml / 8.4 oz | 134 mm / 5.276 in | 53.4 mm / 2.102 in |
| Sleek | 330 ml / 11.2 oz | 146.05 mm / 5.750 in | 57.4 mm / 2.260 in |
| Sleek | 355 ml / 12 oz | 156.6 mm / 6.165 in | 57.4 mm / 2.260 in |
The dimensions come from manufacturer product tables for specific can families. Tooling and tolerances can differ between suppliers, so packaging projects should always use the technical drawing supplied for the selected container. Standard, slim and sleek can specifications

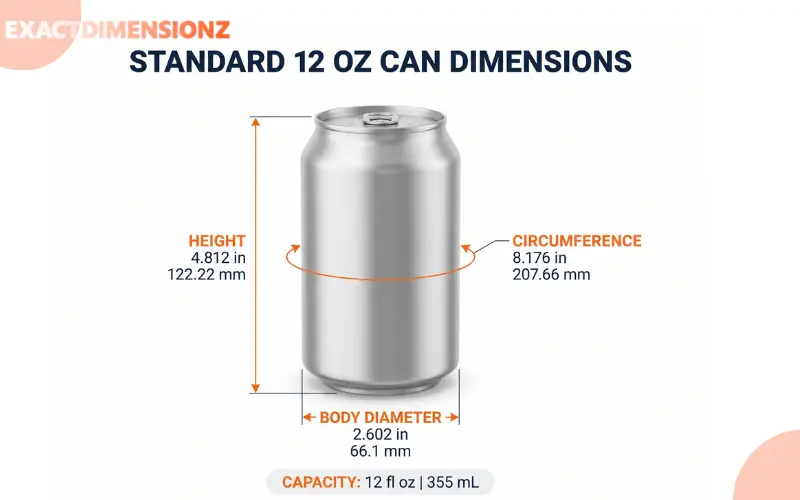

Standard 12 oz Soda Can Dimensions
The standard 355 ml format has a short, broad profile. Its 66.1-millimeter body diameter provides more width than a slim or sleek can, while its 122.22-millimeter height keeps it compact.
This format is associated with North American soft drinks, sparkling water, beer, and other carbonated beverages. Its size works with compatible vending equipment, multi-pack cartons, refrigerator storage systems, and beverage holders designed for standard cans.
The 12 fl oz capacity describes liquid volume rather than physical dimensions. A sleek can can hold the same 355 ml while being 34.38 millimeters taller and 8.7 millimeters narrower.
Mini Soda Can Dimensions
“Mini can” is a consumer-facing name rather than one universal engineering format. Mini soda products may use different body families, capacities, diameters, and heights depending on the beverage company and packaging supplier.
A verified example from the standard can family is the 250 ml container. Shining Packaging lists it at 92 millimeters high and 66.1 millimeters in diameter, equal to 3.622 inches high and 2.602 inches wide.
A 250 ml slim can uses completely different proportions. The published slim format measures 134 millimeters high and 53.4 millimeters in diameter, despite holding the same nominal volume.
For this reason, never estimate mini soda can dimensions from capacity alone. Check the brand, market, body style, and manufacturer drawing.
Slim Soda Can Dimensions
A slim can has a narrow body and extended height. One published 250 ml slim format measures 134 millimeters high by 53.4 millimeters in diameter.
This profile is associated with energy drinks and other smaller-volume beverages. The reduced diameter changes how the can fits inside sleeves, holders, cartons, and dispensing equipment.
A slim can should not be confused with a sleek can. Both are narrower than a standard 66.1-millimeter container, but they use different body diameters.
Sleek Soda Can Dimensions
The 355 ml CrownSleek has a published diameter of 58 millimeters and a height of 156.59 millimeters. That converts to 2.283 inches wide and 6.165 inches tall. Crown 12 oz CrownSleek specifications
Another 355 ml sleek specification uses a 57.4-millimeter diameter and 155.6-millimeter height. The difference demonstrates why a generic format name does not guarantee identical production dimensions across every supplier.
Sleek cans provide a taller printable area and a narrower hand feel than standard cans. They are used for sodas, sparkling waters, ready-to-drink beverages, and other products seeking a taller package profile.
16 oz Soda Can Dimensions
A manufacturer-specified standard 473 ml or 16 oz can measures 157.23 millimeters high and 66.1 millimeters in body diameter. In inches, that equals 6.190 inches high and 2.602 inches wide.
The body diameter matches the listed 355 ml standard can, but the increased height creates space for the additional 118 milliliters. This enables compatible manufacturers to retain the familiar standard body width across multiple capacities.
A 16 oz can should not automatically be assumed to match every other can marketed at that volume. Supplier tooling, end profiles, specialty shapes, and regional packaging systems can produce different dimensions.
500 ml Soda Can Dimensions
The published standard 500 ml can measures 167.84 millimeters high and 66.1 millimeters in diameter. That converts to 6.608 inches high and 2.602 inches wide.
This format holds 16.9 US fluid ounces. It maintains the standard body width while extending the sidewall to provide greater internal volume.
A 500 ml can is taller than the specified 473 ml can by 10.61 millimeters. That difference can matter when designing cartons, shelves, dispensing equipment, or vertical storage spaces.

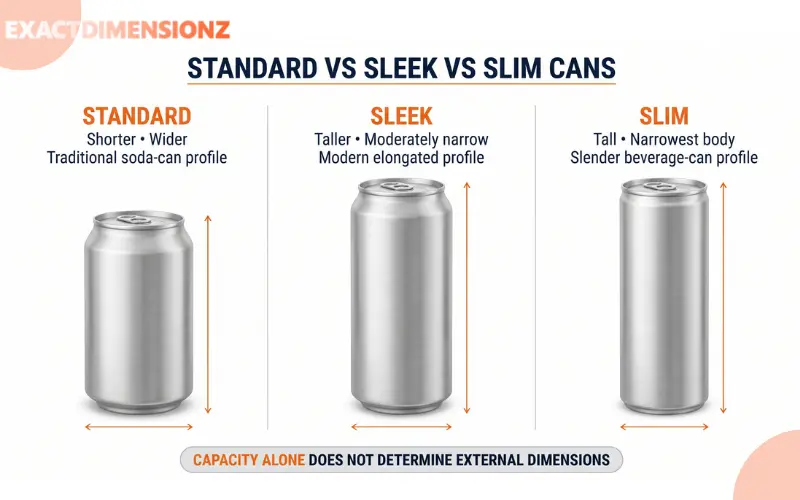

Standard vs Slim vs Sleek Cans
The three terms describe different body families.
| Feature | Standard | Sleek | Slim |
| Example capacity | 355 ml | 355 ml | 250 ml |
| Example height | 122.22 mm | 156.6 mm | 134 mm |
| Example diameter | 66.1 mm | 57.4 mm | 53.4 mm |
| Profile | Shorter and wider | Tall and narrow | Narrowest |
| Example body code | 211 | 204 | 202/201 |
| Typical end | 202 | 202 | 200 |
A standard can gives a familiar broad hand feel. A sleek can reduces the diameter while increasing height, and a slim can uses an even narrower body.
These names should be paired with an actual technical specification. Suppliers may use slightly different measurements or naming conventions for their product ranges.
Soda Can Sizes in the USA and Other Markets
North American soda packaging regularly uses the 355 ml or 12 US fl oz size. A manufacturer example places the standard container at 122.22 millimeters high and 66.1 millimeters in diameter.
The 330 ml format is established in European and other metric markets. Ardagh Metal Packaging lists 330 ml in its European standard-can range, along with 375 ml, 440 ml, and 470 ml formats. Ardagh European beverage-can range
Capacity also varies by individual brand and product line. A company can offer standard, sleek, or slim packaging within the same regional market.
When comparing soda can dimensions internationally, check:
- Nominal liquid capacity
- Standard, sleek, or slim body
- Body diameter
- Finished height
- End size
- Manufacturer tolerance
- Country or sales region
What Do 202 and 211 Mean on a Beverage Can?
Can manufacturers use traditional three-digit industry codes to describe nominal diameters. These codes are not decimal inches.
The first digit represents whole inches. The final two digits represent sixteenths of an inch.
Therefore:
- 202 means 2 inches plus 2/16 inch, or a nominal 2⅛ inches.
- 211 means 2 inches plus 11/16 inch, or a nominal 2¹¹⁄₁₆ inches.
- 204 means 2 inches plus 4/16 inch, or a nominal 2¼ inches.
A standard can can have a 211 body and a 202 end. The upper body is necked inward before the smaller lid is attached, reducing the amount of metal required for the end.
The industry code should not replace the current technical drawing. Actual metric specifications and tolerances supplied by the manufacturer remain the correct values for packaging design and equipment fit.

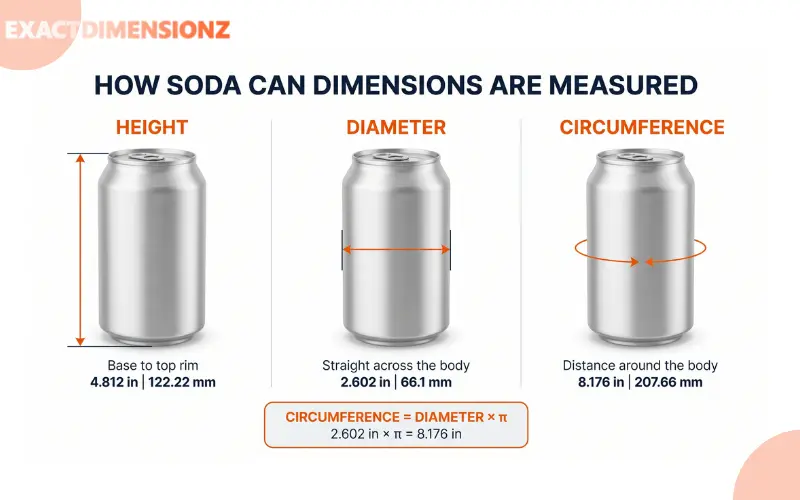

How Are Soda Can Dimensions Measured?
Height
Place the empty or finished can upright on a level surface. Measure vertically from the lowest supporting point of the base to the highest point of the top seam. Record whether the measurement applies to an open empty body or a completed can with its end installed.
Body diameter
Measure straight across the widest cylindrical section through its center. Do not measure only one side, the curved base, or the narrowed neck. A digital caliper provides a more dependable reading than a flexible tape.
Circumference
Wrap a flexible tape around the straight body section and keep it level. The tape must sit flat without crossing the tapered shoulder. Alternatively, calculate circumference by multiplying the verified diameter by pi.
Capacity
Capacity cannot be determined accurately from height and outside diameter alone because the base dome, shoulder, wall profile, and headspace affect internal volume. Use the manufacturer’s nominal fill volume and brimful-capacity specification.
Will a Standard Soda Can Fit in a Cup Holder?
A holder needs an internal opening larger than the can’s maximum body diameter. For a 66.1-millimeter soda can, the rigid opening must exceed 66.1 millimeters before allowing for manufacturing tolerance and usable clearance.
A holder measuring exactly 66.1 millimeters internally would create no practical clearance. The can could bind due to surface finish, condensation, deformation, or differences between container suppliers.
Tapered automotive cup holders also need sufficient depth and support. Diameter alone does not determine stability.
Will a Soda Can Fit in a Koozie?
A standard foam sleeve must accommodate a can body measuring 66.1 millimeters or 2.602 inches across. Flexible foam can stretch, but the internal shape must also support the base and body height.
Slim and sleek cans may fit loosely inside sleeves designed for standard cans. A 53.4-millimeter slim can is 12.7 millimeters narrower than the 66.1-millimeter standard format.
Choose a sleeve made for the correct body family rather than relying only on the beverage capacity printed on the can.
Refrigerator and Shelf Clearance
A standard 355 ml can requires more vertical space than its listed container height. Extra clearance allows the can to be inserted, removed, and tilted without striking the shelf above.
For a 122.22-millimeter can, a storage opening of exactly 122.22 millimeters would not be practical. Packaging rings, shelf lips, trays, and carton material can increase the required space.
Sleek 355 ml cans require significantly more vertical clearance because their published height reaches 155.6 or 156.59 millimeters, depending on the supplier specification.

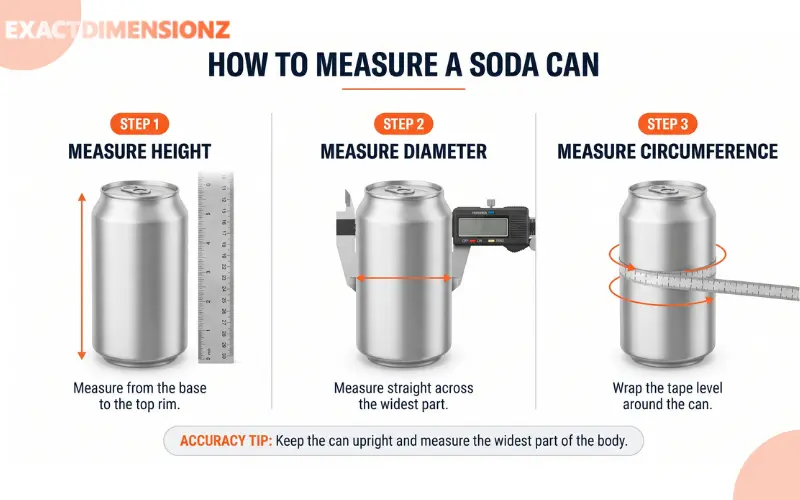

How to Measure a Soda Can Accurately
Use a digital caliper for diameter and a rigid height gauge or steel rule for height. Place the can on a flat surface and take at least three body-diameter readings after rotating it between measurements.
Do not crush, dent, or press the container while measuring. Even small deformations can change the result, especially on an empty aluminum body.
Record the can’s brand, capacity, country, packaging style, and production code. These details help explain why a measurement may differ from another can carrying the same nominal liquid volume.
For commercial packaging, artwork, filling lines, vending machines, or custom holders, request the current technical drawing from the can supplier. A consumer measurement is not a substitute for production specifications.
FAQs
What are the dimensions of a standard soda can?
A specified standard 355 ml can measures 122.22 millimeters high and 66.1 millimeters in body diameter. That equals 4.812 inches high and 2.602 inches wide. Manufacturer tolerances and alternative tooling can produce small differences.
How tall is a 12 oz soda can?
The Shining Packaging standard 12 oz can has an open-can height of 122.22 ± 0.30 millimeters. Its nominal height converts to 4.812 inches. A 12 oz sleek can is taller because it uses a narrower body.
What is the diameter of a soda can?
The specified standard 355 ml can has a 66.1-millimeter body diameter, equal to 2.602 inches. Its neck and lid are narrower than its main body. Slim and sleek cans use smaller body diameters.
What is the circumference of a standard soda can?
A 66.1-millimeter body diameter produces a calculated circumference of 207.66 millimeters. That equals 20.766 centimeters or 8.176 inches. Label artwork needs supplier templates because printing requires allowances beyond the mathematical circumference.
Are all 12 oz soda cans the same size?
No, equal capacity does not guarantee equal physical dimensions. A standard 355 ml can measures 122.22 by 66.1 millimeters in one manufacturer specification, while a 355 ml sleek can measures 155.6 by 57.4 millimeters in another. Always identify the can family and supplier specification.
Conclusion
A manufacturer-specified standard soda can holds 355 ml or 12 US fluid ounces and measures 122.22 millimeters high by 66.1 millimeters in body diameter. Its calculated body circumference is 207.66 millimeters, while its 202 end is narrower than its 211 body.
Those measurements do not apply universally to mini, slim, sleek, 16 oz, or international cans. For reliable planning, compare the capacity, height, body diameter, end size, manufacturer tolerance, and regional format before designing packaging or checking whether a soda can will fit.
